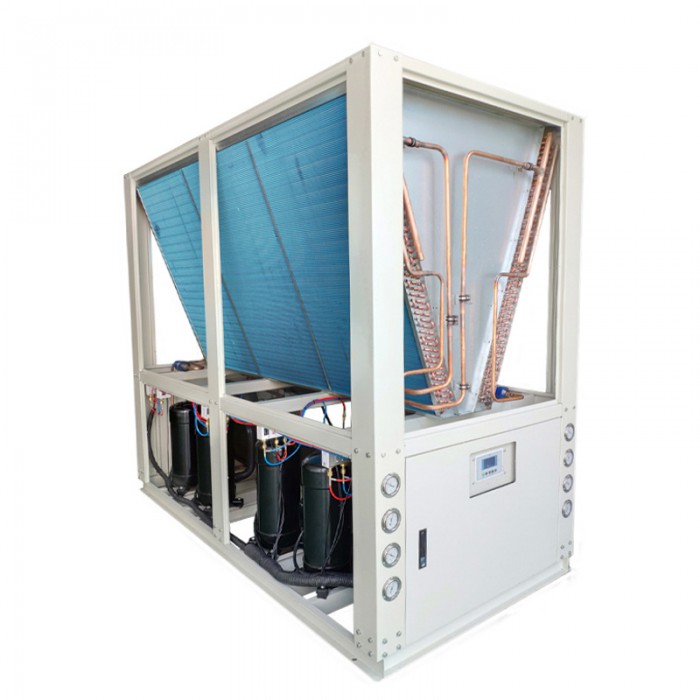

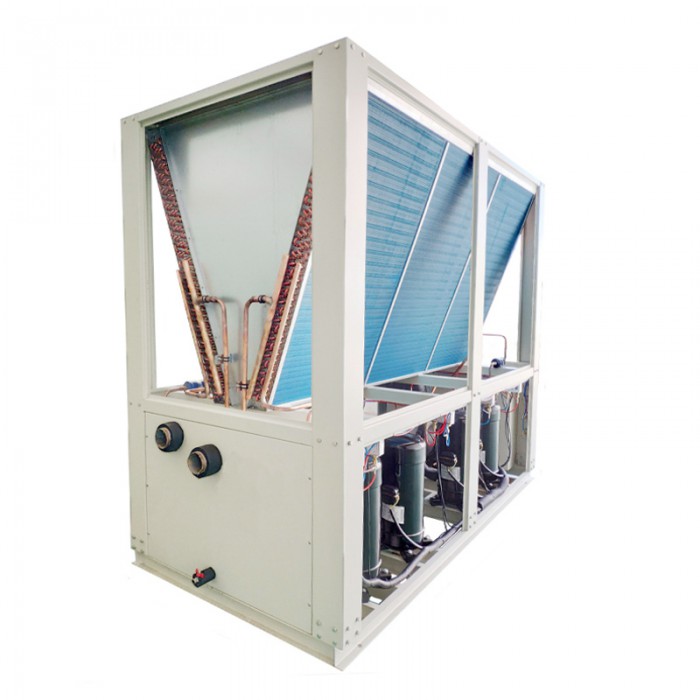

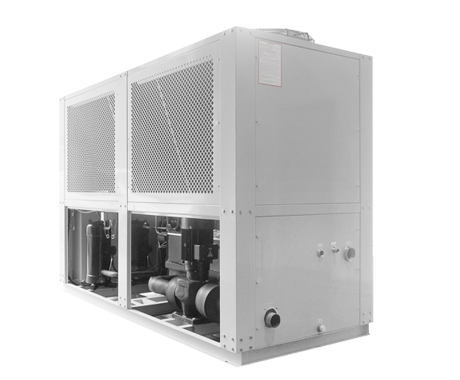

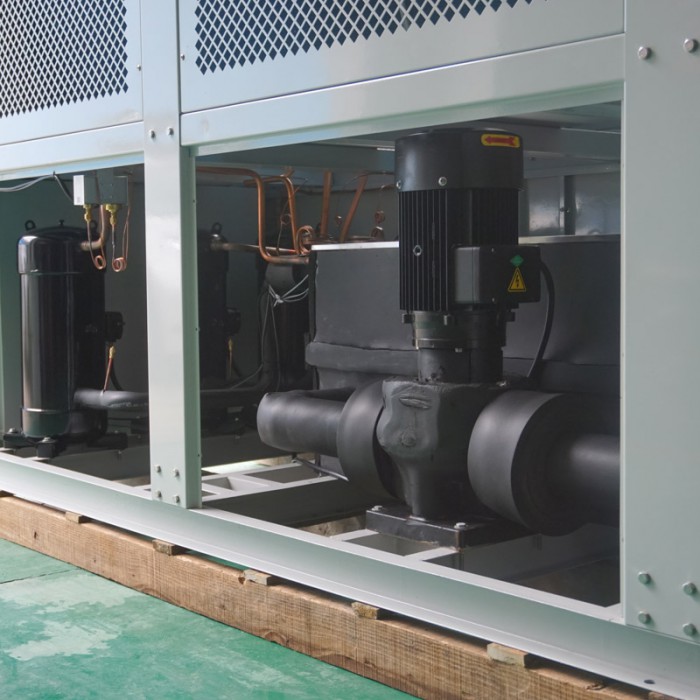

Air-cooled scroll chiller HX-50FW

The air-cooled chiller unit adopts air cooling method, eliminating the essential cooling tower, cooling water pump, and pipeline system of the cooling water system, avoiding condenser scaling and water pipe blockage in areas with poor water quality, and saving water resources. It is the most economical and simple model for maintenance and repair in the cold water industry equipment products. Air cooled chillers are mainly used for cooling: the heating components of the equipment ensure that the equipment operates normally at a constant temperature. The air-cooled chiller is suitable for high-speed spindles, electric spindles, CNC machine tools, coordinate boring machines, grinders, machining centers, laser marking machines, laser engraving machines, laser welding machines, laser coding machines, laser cutting machines and other equipment!
Product series:air-cooled vortex single machine and four machine series
Outlet water temperature:5℃~35℃
Refrigerant   :R407C/R134A/R404A)
Cold capacity range:140kw
Application areas:food processing, pharmaceuticals, industrial manufacturing, packaging rubber, biological fermentation, reactor applications, etc.
  • details
  • parameter
  • manual

Product description

Huaxiang air-cooled industrial chiller adopt of advanced manufacturing production technology, excellent quality, compact structure, nice appearance. Cooling capacity range from 2400Kcal/h- 12000Kcal/h (1HP-50HP).



Air cooled chiller systems typically are easy to install and maintenance, have a lower maintenance cost since they do not require a cooling tower, water pumps, and associated condenser water chemical treatment. In addition, these small industrial chillers are normally used in Metal working, Laser, Electroplating, Printing, Packaging, Ultrasound, Water jet, Vacuum coating, etc.



Product features

1. Adopted world famous brand compressors and high efficiency condenser and evaporator, ensure high cooling efficiency, low energy consumption, low noise and long service life.

2. 100% original brand parts, including compressor, electrical components and refrigeration components. Danfoss/Copeland scroll compressor; Schneider electrical components; Danfoss/Emerson thermal components.

3. Self-processing components: Condenser, Evaporator, SS storage tank and Cabinet self-processing.

4. Copper coil built in SS tank evaporator, easy for cleaning and installation (plat type, shell and tube available on request).

5. Refrigerant: R22 charged, R407C, R410A, R134A for option.

6. Over-sized evaporator and condenser ensure the chiller unit could running under 45ºC high ambient temperature.

7. Microcomputer control system offering accurate temperature stability within ±1ºC. Intelligent PLC microcomputer control, no need manual monitoring, 485 communication interface remote control and centralized management.

8. Multi-protection devices ensure the chiller unit running safety.

9. The innovative evaporator-in-tank configuration ensure a steady water temperature offered, as the evaporator also cools the tank itself, reduces ambient heat again, and increases the efficiency.

10. Energy efficient solutions: our specialists are aware of the rising cost of energy and the pressure to reduce energy consumption, and offer many energy saving products that favor life time costs including variable speed pump & fan packages and energy efficient refrigeration products.

11. Low noise and big volume air blower.



Application

Industrial chillers are widely used in Plastic & Rubber industry, Metal working, Mechanical & Engineering, Chemical & Pharmaceutical, Food & Beverage, Laser, Electronics industry, Textile, Electroplating, Printing, Packaging, Ultrasound, Semi-conductor testing, Water jet, Vacuum coating, Construction and Military etc. It can accurately control the temperature to reach the cooling effect you request, increase the product quality and improve the production efficiency.


Air-cooled scroll chiller technical parameter sheet:


ModelHX-15FWHX-20FWHX-25FWHX-30FWHX-40FWHX-50FW
Rated cooling capacitykw39566784112140
Kcal/h335404816057620722409632012040
Input   powerkw13.51824263642
Rated   currentA243243466475
Control   systemFully   automatic
Work   environment5℃~35℃
Power   supplyV3P-380V-50Hz(Non-standard   voltage can be customized)
CompressorTypeHermetic   scroll type
Power (KW)5.5*27.5*210*27.5*37.5*410*4
RefrigerantTypeR22(Optional   environment-friendly refrigerant:R407C/R134A/R404A)
Charge volume (KG)8.51112162227
Control modeExpansion   valve
Refrigeration system234
CondenserTypeHigh efficient aluminum   finned coil copper tube+Low noise axial fan
Air volume (m3/h)155002200025000310004250055000
Fan power (KW)0.7*20.78*20.7*30.78*31.3*31.3*4
EvaporatorTypeWater   tank with coil / Shell and tube
Chilled water flow (m3/h)7.51012152025
Pressure (Mpa)1.5Mpa
Dia. of pipe (mm) DN-40DN-50DN-65DN-80
PumpTypeVertical   pipeline pump
Power(KW)1.12.22.2345.5
lift  (M)125166200250333416
Water tankMaterial304   stainless steel
Volume(L)210270310360100100
Safety   deviceCompressor   inner protection, over current protection, high/low pressure protection, over   temperature protection, flow rate protection, phase sequence/phase missing   protection, low level coolant protection, anti freezing protection, exhaust   overheat protection, safety valve, overload protection, under voltage, over   voltage etc.
DimensionL   (mm)160019002140240021002450
W (mm)89010001000112016001600
H (mm)163018001700190018001800
WeightKG700820980110012501350
Remark: The above specifications are according to the following   design conditions:
    1. Chilled water inlet temperature 12℃, chilled water outlet temperature   7℃; Condenser air inlet temperature 35℃, condenser air outlet temperature   40℃;
    2. The product specifications in the above parameter list adopt water tank   coil evaporator + pump; For products with refrigerating capacity of 30HP and   above, shell tube evaporator + water tank + chilled water pump can be   selected;
    3. Both English and Chinese language interface digital series control   system; Programmable PLC system with RS485 communication;
    4. The design pressure of chilled water side and cooling water side of the   standard model is 1.0mpa; Container pressurized equipment (special ordering   machine) applicable design pressure: 1.6mpa cooling water side, 1.0mpa frozen   water side;
    5. The main power supply: 3 phase 380V 50Hz; Operation power: single-phase   220V 50Hz; When ordering non-standard power supply, please apply in advance.


• The following instructions should be read carefully before the unit is installed to avoid unnecessary damage.

• The unit should be kept as level as possible when handling and moving, never tilted more than 30 degrees, and there should be support rods on all spreaders to avoid injuring the equipment.

• The unit can be installed on the roof or outdoor patio, and the supporting surface must be strong enough; it can withstand the weight of the unit during operation.

• The unit should not be installed in dusty, dirty, corrosive gas and humidity.

• The installation of the unit should leave enough space of more than 1.5 meters in front, back, left and right for heat dissipation and easy access for maintenance personnel.

• The set in place, should be shockproof cushion placed under the set of bottom frame, adjust the level of the set before tightening the foot screws and ambrose.

• System plumbing installation, insulation, should be designed by professionals to guide, and the implementation of the corresponding provisions of the HVAC installation specifications.

• External water piping system must be installed anti-vibration soft joints, filters, check valves, drain valves, exhaust valves, shut-off valves; such as expansion tanks should be installed above the highest part of the system 1-1.5 meters; tank capacity of about the entire system of water / 10: Exhaust valves should be installed in the highest part of the system between the expansion tanks; chilled water piping system and expansion tanks should be made thermal insulation.

• Water pumps and units, water pumps and system water piping should be connected using shockproof flexible joints, while the piping and pumps should be self-supporting brackets to avoid unit stress.

• In order to prevent welding slag and other foreign objects from entering the evaporator and causing damage to the heat exchanger tube, we are required to install a water filter of more than 16 mesh at the evaporator inlet of the unit (or at the tank refill inlet). System water pipeline flushing and insulation should be carried out before connecting with the unit, it is strictly prohibited to connect the pipeline with the unit before it is flushed clean, and lightning protection should be considered according to the height of the actual installation location of the unit.


Instructions for use

Before the user starts the machine for the first time, please read the instruction manual of the product carefully and operate the machine according to the steps stipulated in the instruction manual to ensure the safety; meanwhile, it is recommended to start the machine for the first time under the guidance of the company's commissioning engineers.


The following work must be done before starting operation

• Connect all the power supply cables and external power supply control equipment according to the requirements.

• Check the water source of water tank or expansion tank, open the exhaust valve, exhaust the air in the channel; check whether the compressor and fan or water pump running direction is correct.

• The unit will be energized in order to warm up the lubricating oil (especially in cold areas, the time is not less than 12 hours)

In case of air-conditioning system, check whether the terminal equipment operates normally.

• In the case of the main circuit power failure, carry out a test run to check whether the sequence of action is normal; check whether the compressor and fan or pump group running in the right direction

• Set industrial refrigeration (or heat pump) operation mode as needed.


After the completion of the above work, you can turn on the main power and open the chiller or air-conditioning system for the host; to be the water temperature to meet the requirements of the normal unit once the debugging is completed and put into normal operation, you must keep its power supply phase sequence unchanged.


Maintenance

• The unit has been adjusted by the company's commissioning engineers, has reached the best working condition, please do not self-adjustment.

• The unit must clean the filter at the water inlet end of the pump after 24 hours of trial operation.

Frequent operation of the switch is strictly prohibited, the number of compressor start-up shall not exceed 6 times / hour. And the interval between each start-up operation should be more than 5 minutes.

• The main circuit power switch can not be disconnected during normal use.

• The whole machine should be checked once a month, the items are:

1, electrical terminals solid bolts have no loosening.

2, the set of moving parts have no noise, whether the operation is normal.

3, each motor running current is normal, insulation resistance is normal.

• The heat exchanger of the unit should be cleaned at least twice a year with special cleaning liquid or high-pressure water to maintain good heat exchange effect.

• If the heat pump unit is turned on in winter, please pay special attention to: the temperature is below 0°C to check the circulating water insulation effect regularly. And can not cut off the unit inlet power; long-term shutdown when not in use, the water side of the heat exchanger and the system piping must be drained to avoid pipe freezing.

• The unit should be operated and managed by specialized personnel, and should be shut down in time to find out the reasons and troubleshooting when abnormal conditions are found. It is strictly prohibited to run with disease.

• If you encounter any difficulties that can not be solved, please feel free to contact the company's customer service center. Warning: In order to ensure the normal use of your unit, please follow the following tips during the use of (winter, spring): 1. Frequent shutdown, the unit's main power switch and the single-pole air switch in the electronic control box must be kept closed and energized.


2. When the ambient temperature is low, the water temperature is correspondingly low and there is a danger of freezing, the unit will automatically start the anti-freezing program to prevent the occurrence of the accident, but at this time, if you turn off the water pump and the unit power supply, then the anti-freezing program fails, the water temperature will continue to fall to the point that the water system is frozen or even frozen heat exchanger pipe, etc. In order to avoid such accidents, please you must do the following two:


1, the water pump must be linked with the unit, the unit to control the start and stop of the water pump, rather than manual control.

2, the pump and unit main circuit and control loop must be kept energized, if you can not keep the energized state. It is necessary to release the water in the water system in time.


The company's products in the installation and commissioning, if the user needs, can first communicate with the company's technical staff to confirm the site service.


Our company follows the principle of continuous product improvement, it may be difficult to notify you of some improvements and changes in product specifications, performance and materials, please understand.
