12HP Air-Cooled Scroll Industrial Chiller Equipment for Chemical & Pharmaceutical Reactor Cooling
Product Description
Engineered for critical utilities in chemical, fine chemical, and API manufacturing, our HX-12FW 12HP air-cooled scroll industrial chiller equipment provides high-precision temperature control for jacketed reactors. Powered by reliable hermetic scroll compressors and an integrated ambient-condensing air cooling design, this robust process cooling unit supports 24/7 continuous operation and tight thermal regulation.
Product advantages

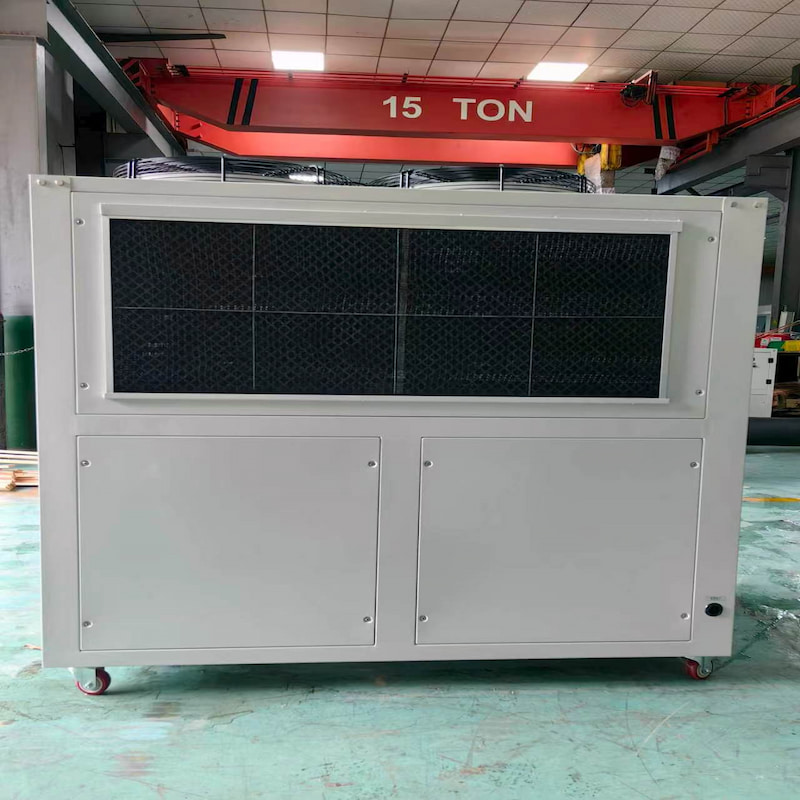

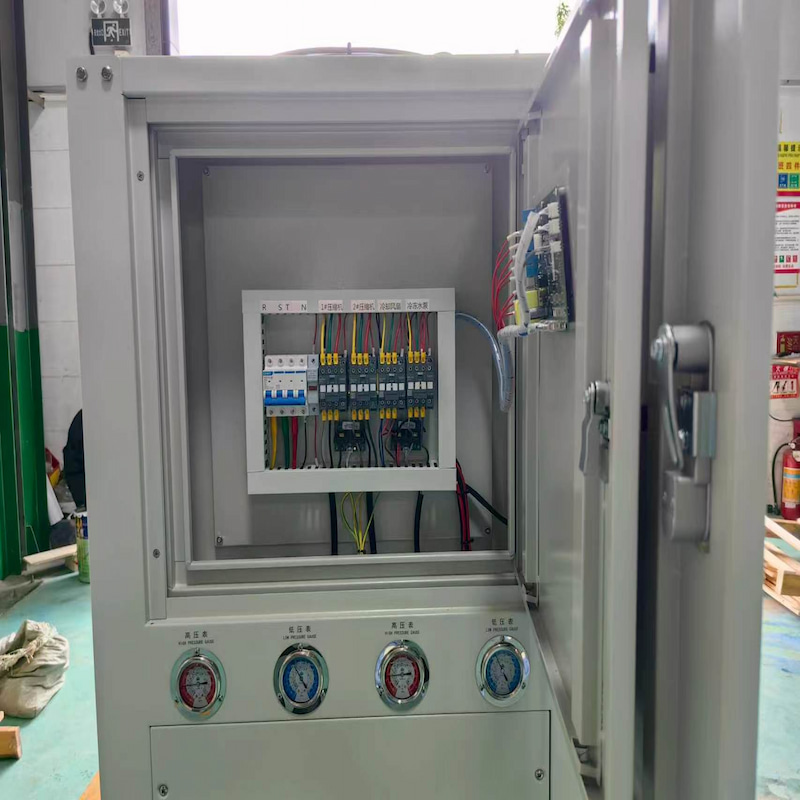

Equipped with dual high-efficiency scroll compressors and an advanced PLC-based PID controller, maintaining process fluid temperatures down to ±0.1∘C during peak reaction loads. Integrated with comprehensive plant-grade protections—including high/low refrigerant pressure switches and phase protection relays—ensuring operational reliability for heavy-duty industrial chiller products. Features built-in microchannel/copper-tube aluminum-fin condensers and low-noise axial fans, eliminating external cooling tower requirements while delivering space-saving cooling performance for plant footprints.
Item :
HX-FWProduct name :
Air-cooled scroll typeCooling capacity :
3 ~ 200 kWRefrigerant :
R407C/R410A/R134A Environmentally FriendlyMOQ :
1 unitApplication :

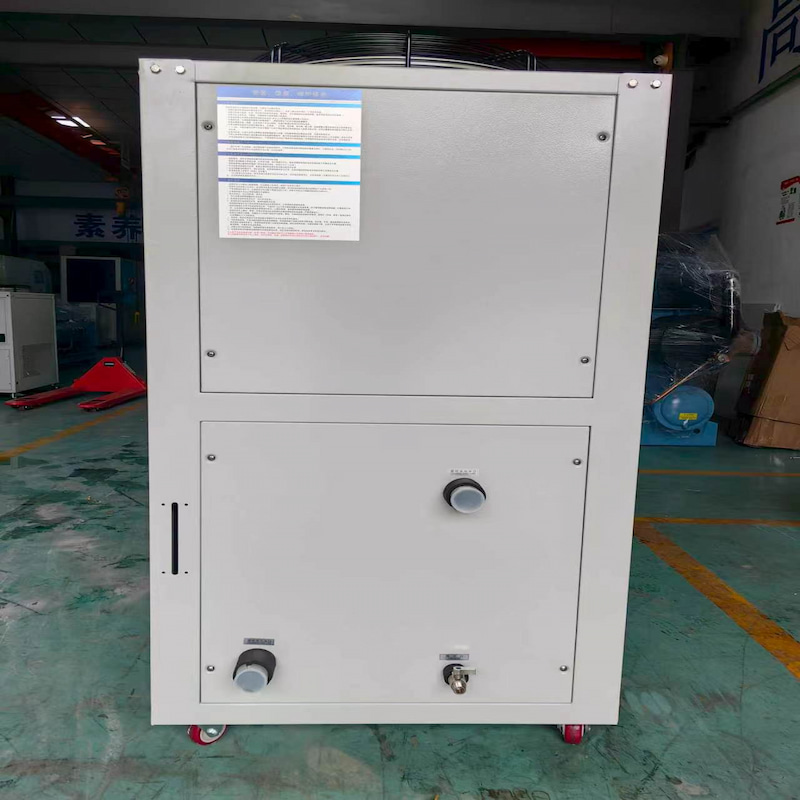

Widely used in Polymerization Reactor Chiller System, API Reactor Cooling and Chemical Synthesis Temperature Control.HX-FW Series Packaged Air-Cooled Industrial Chiller
Our HX-FW Series air-cooled chillers utilize ambient air as the cooling source to reliably chill water to your exact specifications. Featuring a built-in water tank and pump, this compact, plug-and-play system requires no external cooling tower, making it the ideal solution for precision manufacturing environments.
Featuring a box-type structure with an integrated water tank and circulating pump, this unit eliminates the need for complex cooling tower installations. It boasts a beautiful exterior, compact footprint, and makes installation and maintenance incredibly simple and convenient.
Available in single or multi-compressor configurations. The system automatically alternates compressor operation based on load changes, balancing running hours to significantly save energy during partial loads and extend the lifespan of the equipment.
Utilizes fully enclosed compressors and high-efficiency copper tube condensers/evaporators. Equipped with a comprehensive suite of safety protections and an intuitive LCD human-machine interface, ensuring low noise, stable performance, and easy real-time monitoring.
Product features of air-cooled chillers: The unit uses a fully enclosed compressor and electronic control components, equipped with a condenser and evaporator made of high-efficiency and high-quality copper tubes for heat exchange; Equipped with various safety protection devices, stable performance, low noise, long service life, and simple operation; Adopting a liquid crystal display human-machine interface, the operation is simple and convenient, and the operating status is clear at a glance; The model adopts a single compressor or a combination of multiple compressors for refrigeration system. The compressor can automatically alternate operation according to load changes, balancing the operating hours of each compressor, achieving the effect of saving energy consumption and extending the service life of the chiller unit. Easy to regulate energy and more energy-efficient at partial loads; The whole machine has a box type structure with a beautiful appearance and compact structure, which can be used to check the operation of the unit at any time; The unit can have its own water tank and circulating water pump according to the cooling capacity, without the need for a cooling tower or cooling water pump, making installation and maintenance simple and convenient.
| Parameter | HX-02FW | HX-03FW | HX-05FW | HX-06FW | HX-08FW | HX-10FW | HX-12FW | HX-15FW | HX-20FW | HX-25FW | HX-30FW | HX-40FW | HX-50FW | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity (kW) | 5.4 | 8.1 | 13.5 | 16.2 | 21.6 | 27 | 32.4 | 40.5 | 54 | 67.5 | 81 | 108 | 135 | |
| Cooling capacity (Kcal/h) | 4644 | 6966 | 11610 | 13932 | 18576 | 23220 | 27864 | 34830 | 46440 | 58050 | 69660 | 92880 | 116100 | |
| Total power (kW) | 2.02 | 2.82 | 4.52 | 5.27 | 7.13 | 9.15 | 11 | 13.25 | 19 | 22.7 | 28.3 | 36.7 | 47 | |
| Running current (A) | 12 | 5.6 | 9 | 11 | 14 | 18 | 22 | 26 | 38 | 45 | 56 | 72 | 94 | |
| Power supply | Single Phase 220V 50Hz | 3 Phase 380V 50Hz | ||||||||||||
| Temp control range (℃) | 5-35 | |||||||||||||
| Temp control accuracy (℃) | ±1-2 | |||||||||||||
| Refrigerant | Type | (R407C / R410A / R134A) | ||||||||||||
| Filling amount (KG) | 1.6 | 1.8 | 2.8 | 3.2 | 4.4 | 5.6 | 6.8 | 8 | 12 | 15 | 18 | 22 | 28 | |
| Compressor | Way to control | Capillary | Thermal Balance Expansion Valve | |||||||||||
| Form | Scroll | |||||||||||||
| Power (kW) | 1.5*1 | 2.25*1 | 3.75*1 | 4.5*1 | 3.0*2 | 3.75*2 | 4.5*2 | 5.25*2 | 7.5*2 | 9.0*2 | 7.5*3 | 7.5*4 | 9.0*4 | |
| Frozen water | Tank volume (L) | 40 | 45 | 65 | 70 | 140 | 180 | 200 | 200 | 260 | 300 | 390 | 450 | 480 |
| Tank material | SUS304 stainless steel | |||||||||||||
| Pipe diameter | G1/2" | G1" | G1" | G1" | G1" | G1-1/2" | G1-1/2" | G1-1/2" | G2" | G2" | G2-1/2" | G2-1/2" | G3" | |
| Water pump | Head (m) | 20 | ||||||||||||
| Power (kW) | 0.37 | 0.37 | 0.37 | 0.37 | 0.55 | 0.75 | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 3 | 4 | |
| Evaporator | Types of | Water tank coil type (shell and tube type) | ||||||||||||
| Water flow (m³/h) | 1 | 1.8 | 3 | 3.6 | 4.8 | 6 | 7.2 | 9 | 12 | 15 | 18 | 24 | 30 | |
| Condenser | Types of | Efficient copper tube plus aluminum foil fin type + external rotor cooling fan | ||||||||||||
| Air volume (m³/h) | 2200 | 3300 | 5500 | 6000 | 8500 | 11000 | 11000 | 16500 | 22000 | 27500 | 33000 | 44000 | 55000 | |
| Fan power (W) | 150 | 200 | 200*2 | 200*2 | 290*2 | 450*2 | 670*2 | 825*2 | 937*2 | 825*3 | 937*3 | 937*4 | 937*6 | |
| Safety Protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection. | |||||||||||||
| Dimensions | Long (mm) | 850 | 930 | 1100 | 1100 | 1350 | 1450 | 1550 | 1600 | 1900 | 2150 | 2400 | 2000 | 2500 |
| Width (mm) | 520 | 570 | 680 | 680 | 740 | 780 | 780 | 880 | 990 | 990 | 1100 | 1560 | 1780 | |
| High (mm) | 1100 | 1150 | 1350 | 1350 | 1450 | 1550 | 1600 | 1600 | 1875 | 1875 | 1930 | 1850 | 1900 | |
| Unit weight (KG) | 85 | 120 | 150 | 170 | 210 | 260 | 320 | 450 | 550 | 620 | 780 | 850 | 950 | |
