Air-cooled screw chiller

Name: Air cooled twin-screw chiller unit
Availability: InStock

Home Air-cooled screw chiller

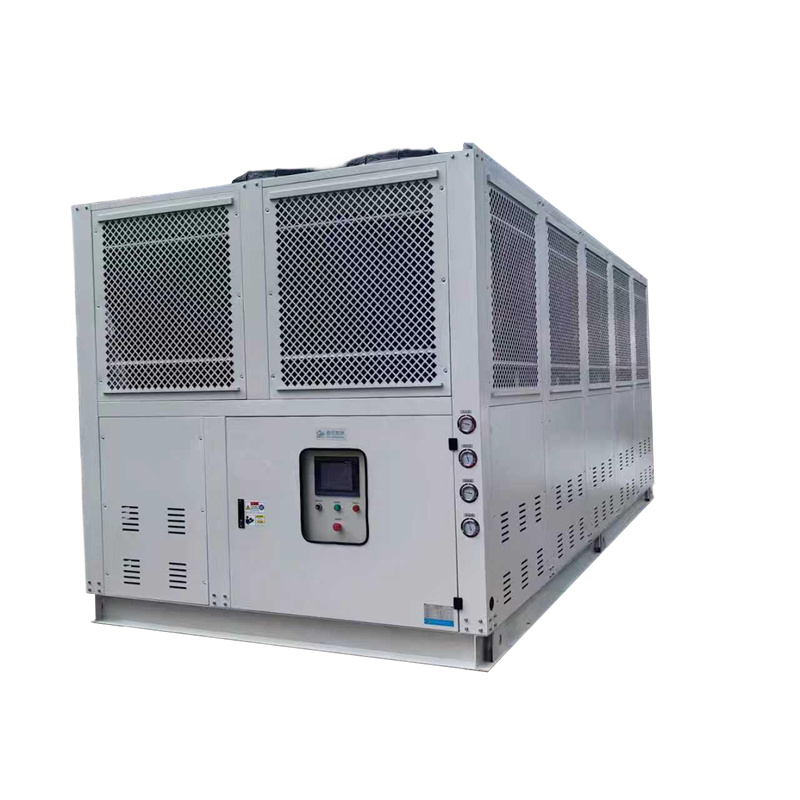

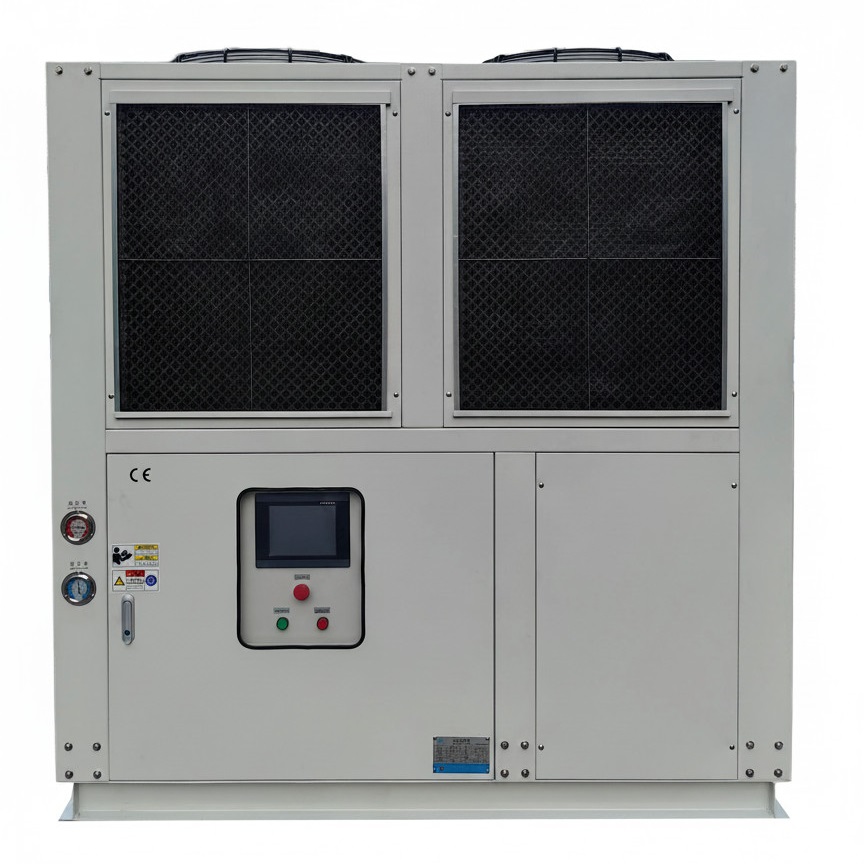

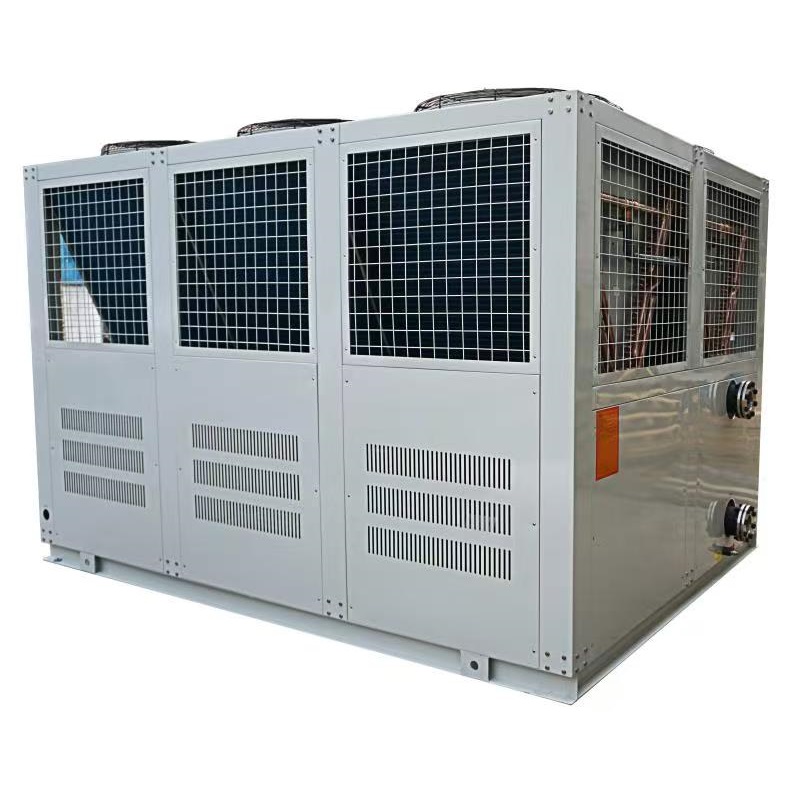

Air cooled twin-screw chiller unit

Engineered for industrial applications, our air-cooled twin-screw chillers deliver high-efficiency cooling with reliable temperature control ranging from 5°C to 35°C. Featuring a semi-hermetic screw compressor and a water-free cooling system, these units offer strong climate adaptability (-10°C to 45°C) and flexible deployment for new energy sectors like battery production. They utilize internally threaded copper pipes for superior heat transfer, ensuring energy savings and easy maintenance.

Item :
HX-FLS
Product name :
Air-Cooled Screw Type Chiller
Cooling capacity :
80~2000kw
Refrigerant :
R22 (R407C) Environmentally Friendly
MOQ :
1 unit
Application :
Food Processing, Pharmaceuticals, Industrial Manufacturing, Packaging and Plastics, Bio-fermentation, Reactor Applications, etc.

Inquire Now

Industrial Air-Cooled Twin-Screw Chiller Unit

The HX-FLS series air-cooled twin-screw chillers deliver high-efficiency, water-free cooling designed specifically for rigorous industrial applications. Engineered with advanced semi-hermetic screw compressors and hyperbolic corrugated hydrophilic aluminum foil, these units provide exceptional thermal stability for new energy sectors, including battery production and photovoltaic material processing.

Cooling Capacity: 80-2000 kW
Temp. Range: 5°C ~ 35°C
Climate Adaptability: -10°C ~ 45°C
Cooling medium: water
Condenser Type: Finned Tube + External Rotor Fan
Compressor Form: Semi-Hermetic Screw

Water-Free Cooling System

Designed for flexible deployment with strong climate adaptability (-10°C~45°C). By dissipating heat directly into the air, it eliminates the need for external cooling towers, significantly optimizing installation layout and ensuring highly controllable operational costs.

High-Efficiency Heat Transfer

The unit adopts high-efficiency internally threaded copper pipes and hyperbolic corrugated hydrophilic aluminum foil. Manufactured via high-speed drilling machines, this creates tighter contact between steel pipes and fins, maximizing energy efficiency and cooling performance.

Simplified Maintenance

Engineered with a horizontal structure heat exchange tube that can be removed as a single unit. This design drastically simplifies internal scale cleaning and routine repairs, while advanced sealing completely eliminates refrigerant leakage phenomena.

Specifications

	Model	HX-60FLS	HX-80FLS	HX-100FLS	HX-120FLS	HX-140FLS	HX-160FLS	HX-180FLS	HX-200FLS	HX-240FLS	HX-260FLS	HX-300FLS	HX-320FLS
Cooling capacity (kW)		180.4	249.4	327.6	351.8	437.2	470.8	555	653	703.4	764.6	928.6	971
Cooling capacity (Kcal/h)		155144	214484	281736	302548	375992	404888	477300	561580	604924	657556	798596	835060
Total power (kW)		56	74	94	102.8	124.2	134.6	152.4	174.6	193	210.8	253.4	258.6
Running current (A)		112	148	180	200	248	260	300	340	380	420	500	520
Power supply		3 Phase 380V 50Hz
Temp. control range (°C)		5°C - 35°C
Temp. control accuracy (°C)		±2°C
Refrigerant	Type	R22 (R407C)
Refrigerant	Filling amount (KG)	30	40	50	60	70	80	90	100	120	132	150	160
Compressor	Form & Control	Semi-hermetic screw compressor / Thermal Balance Expansion Valve
	Start up	Star-Delta Start
	Energy regulation	0%-25%-50%-75%-100% (0%-33%-66%-100%)
	Power (kW)	25.6*2	33.8*2	42.4*2	46.7*2	55.9*2	61*2	69.2*2	80.3*2	87.1*2	96*2	115*2	117.6*2
Evaporator	Type	Shell and tube
	Chilled water flow (m³/h)	36	48	60	72	84	96	108	120	144	156	180	192
	Pipe diameter	PT 3"		PT 4"				PT 5"				PT 6"
Condenser	Type	Efficient copper tube plus aluminum foil fin type + external rotor cooling fan
Condenser	Cooling air volume (m³/h)	66000	88000	110000	132000	154000	176000	198000	220000	264000	286000	330000	350000
Safety Protection		Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection.
Dimensions	Length (mm)	2500	3000	3000	3200	3600	3800	4500	4800	6000	6000	7800	7800
	Width (mm)	1780	1780	2270	2270	2180	2270	2270	2270	2270	2270	2270	2270
	Height (mm)	1820	1820	2100	2100	2200	2200	2200	2200	2200	2200	2200	2200
Unit weight (KG)		1360	1520	1750	1900	2100	2400	2800	3200	3600	3950	4500	4800

Advantages

Water-Free Cooling

Dissipates heat without cooling towers, lowering controllable costs.

Flexible Deployment

Compact modular design easily adapts to diverse plant layouts.

Climate Adaptability

Reliable operation from -10°C to 45°C ambient temperature.

High Energy Efficiency

Internally threaded copper pipes boost overall heat transfer.

Easy Maintenance

Horizontal extractable heat exchange tube for easy internal descaling.

New Energy Focus

Ideal for battery production and photovoltaic material processing.

Application Areas

Battery Production & Manufacturing

New Energy Batteries

Delivers high-efficiency, stable cooling vital for new energy battery production. The air-cooled twin-screw system ensures precise temperature control during manufacturing processes, significantly improving battery safety and overall yield rates.

Air Cooled Chiller for Battery Production

Photovoltaic Material Processing

Solar & Photovoltaic Sector

Provides robust and continuous thermal management essential for the fabrication of photovoltaic materials. The flexible deployment of these chillers adapts perfectly to large-scale solar panel processing facilities.

Air Cooled Screw Chiller for Photovoltaic Material Processing

General Industrial Refrigeration

Heavy Industrial Processing

An important equipment solution for heavy-duty industrial refrigeration. From chemical processing to large-scale manufacturing, it mitigates heat-induced machinery strain while keeping water consumption to an absolute minimum.

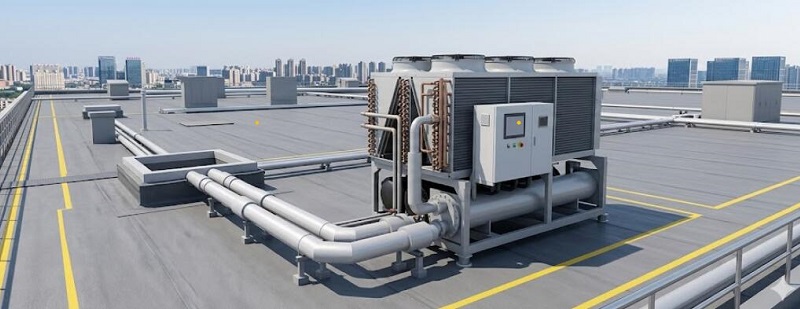

Chiller System for Industrial Refrigeration
