Direct factory supply of chillers tailored for full-process cooling in plastic and rubber applications, covering two mainstream types: air-cooled scroll and water-cooled screw. Designed to meet the cooling demands of entire production lines including injection molding, extrusion, blow molding, and rubber vulcanization. The units deliver precise temperature control for injection mold temperature stabilization, extruder barrel cooling, film-blowing setting, and rubber vulcanization cooling, effectively reducing shrinkage, deformation, and color difference defects while significantly improving yield rates. Equipped with multiple overload protection features, the chillers support stable 24/7 mass production, offer high heat dissipation efficiency, low noise operation, and support non-standard temperature control customization. Suitable for complete equipment integration in small, medium, and large rubber & plastics processing plants, and ideally aligned with the procurement needs for capacity relocation to Southeast Asian overseas facilities.
Item :

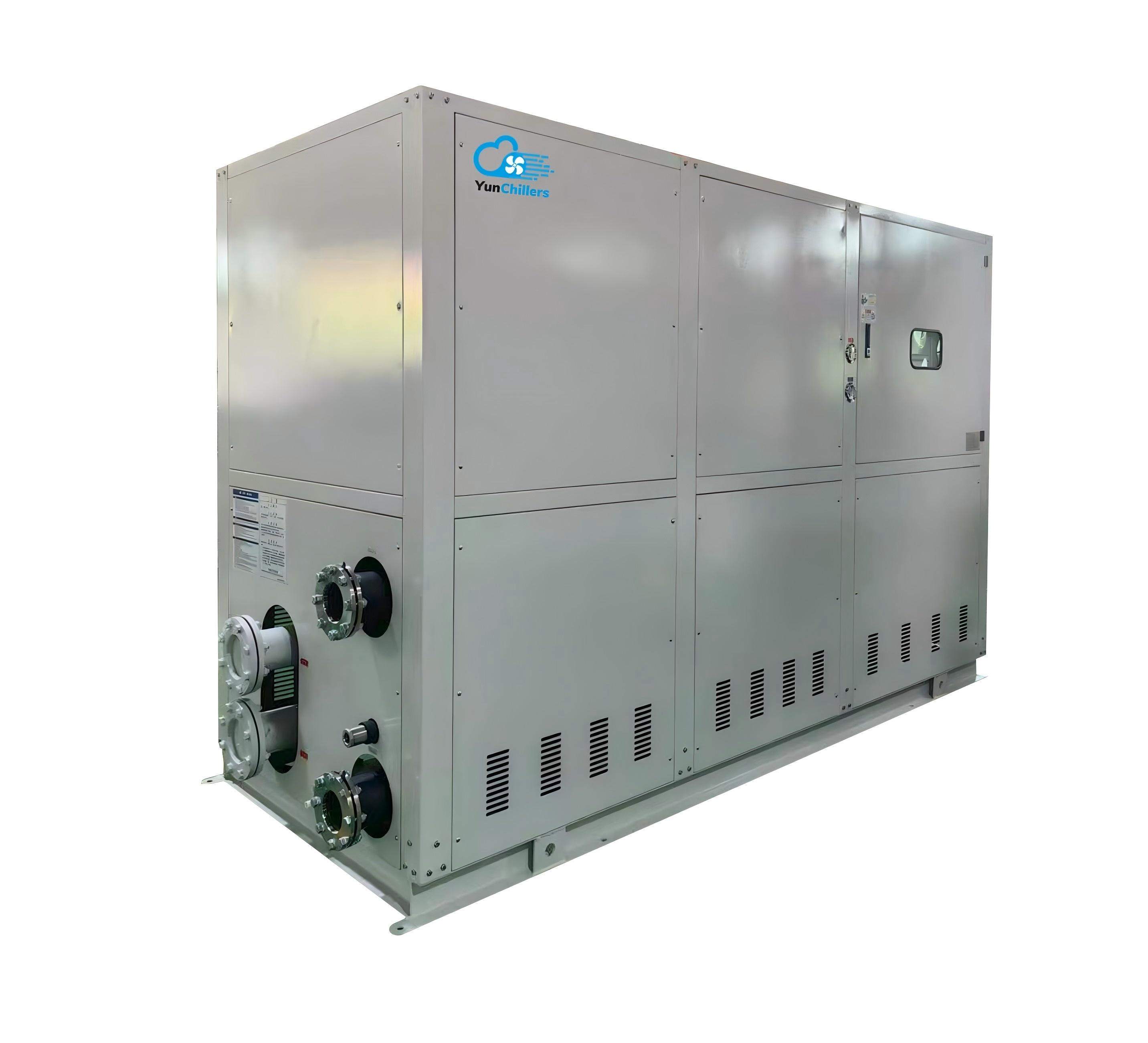

HX-SWProduct name :
Water cooled vortex (piston) typeCooling capacity :
10 ~ 250kwRefrigerant :
（R407C/R410A/R134A）Environmentally FriendlyMOQ :
1 unitApplication :
Injection mold cooling, extruder barrel cooling, film-blowing setting, pipe extrusion cooling, rubber vulcanization temperature stabilization, plastic pelletizing coolingUncompromising Efficiency in Water-Cooled Scroll Chillers
Our industrial-grade water-cooled scroll chillers are engineered to meet versatile temperature control challenges, delivering reliable, low-noise, and energy-efficient cooling performance for a wide range of commercial and industrial applications. Featuring intelligent control, it utilizes a branded, fully hermetic scroll compressor. It offers numerous advantages, including high efficiency, low noise, minimal vibration, reliable operation, and a long service life.
Design applications incluce industrial refrigeratior plastic molding.electronic welding printing and packaging,textile printing and dyeing,electroplating and oxidation,commercial air conditioning
systems.
The unit has a compact structure,small fotprint, simple pipeline design,only requires extemal water pipes,and easy installation and maintenance. Intellgent contro,using brand fully enclosed vortex refigeration compressor. It has the advantages of high efficiency,low noise,small vibration,reliable operation,and long service life.
The microcomputer control system has powerul functions such as safety protection,communication,fault diagnos,and automatic adaptation. And provide multiple protection functions such as high and kow voltage protection,frozen water anti freezing and icing protection,power phase sequence protection,phase loss protection,insufficient water flow protection,compressor motor overheating,etc.
| Parameter | HX-05SW | HX-08SW | HX-10SW | HX-15SW | HX-20SW | HX-25SW | HX-30SW | HX-40SW | HX-50SW | |
|---|---|---|---|---|---|---|---|---|---|---|
| Cooling capacity (kW) | 15 | 24 | 30 | 45 | 60 | 75 | 90 | 120 | 150 | |
| Cooling capacity (Kcal/h) | 12900 | 20640 | 25800 | 38700 | 51600 | 64500 | 77400 | 103200 | 129000 | |
| Total power (kW) | 4.12 | 6.75 | 8.25 | 12.1 | 17.2 | 20.2 | 25.5 | 33 | 41 | |
| Running current (A) | 8 | 13 | 16 | 24 | 34 | 40 | 51 | 66 | 82 | |
| Power supply | 3 Phase 380V 50Hz | |||||||||
| Temp. control range (℃) | 5 ~ 35 | |||||||||
| Temp. control accuracy (℃) | ±1 ~ 2 | |||||||||
| Refrigerant | Type | (R407C/R410A/R134A) | ||||||||
| Filling amount (KG) | 3 | 4.8 | 6 | 8 | 12 | 14 | 18 | 24 | 30 | |
| Compressor | Throttling Device | Capillary | Thermal Balance Expansion Valve | |||||||
| Type | Scroll | |||||||||
| Power (kW) | 3.75 | 3.0*2 | 3.75*2 | 5.5*2 | 7.5*2 | 9.0*2 | 7.5*3 | 7.5*4 | 9.0*4 | |
| Chilled Water | Tank volume (L) | 65 | 140 | 180 | 200 | 260 | 280 | 390 | 450 | 500 |
| Tank material | SUS304 Stainless Steel | |||||||||
| Pipe diameter | G1" | G1-1/2" | G1-1/2" | G1-1/2" | G2" | G2" | G2-1/2" | G3" | G3" | |
| Water Pump | Pump Head (m) | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 | 20 |
| Power (kW) | 0.37 | 0.55 | 0.75 | 1.1 | 2.2 | 2.2 | 3 | 3 | 4 | |
| Evaporator | Type | Water tank coil type (shell and tube type optional) | ||||||||
| Chilled water flow (m³/h) | 3 | 4.8 | 6 | 8 | 12 | 15 | 18 | 24 | 30 | |
| Condenser | Type | Shell and tube | ||||||||
| Cooling water flow (m³/h) | 3.5 | 5.6 | 7 | 11 | 14 | 18 | 21 | 24 | 35 | |
| Safety Protection | Compressor overheating protection, overcurrent protection, high and low pressure protection, overtemperature protection, flow protection, phase sequence/phase loss protection, exhaust overheating protection, antifreeze protection. | |||||||||
| Dimensions | Length (mm) | 950 | 950 | 1550 | 1550 | 1760 | 1760 | 1940 | 2200 | 2400 |
| Width (mm) | 650 | 650 | 750 | 750 | 750 | 750 | 900 | 950 | 950 | |
| Height (mm) | 1100 | 1100 | 1350 | 1350 | 1480 | 1480 | 1680 | 1700 | 1700 | |
| Unit weight (KG) | 130 | 190 | 260 | 350 | 440 | 520 | 650 | 750 | 850 | |
Wide Range of Cooling Capacity |
High Cost Efectineness |
Mature Technology |
Flexible Installation |
Efficient Heat Dissipation |
Comprehensive Safety |
